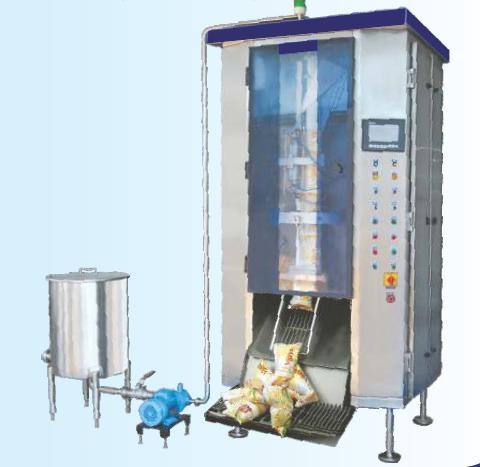

High Edible Oil Automatic Pouch Form Fill Seal Machine
Product Details:
- Type Automatic Pouch Form Fill Seal Machine For Edible Oil / Vanaspati / Ghee
- Material Packaging material: Co-ex multi-layer virgin film
- Capacity 200/500/1000 Milliliter (mL)
- Computerized Yes
- Automatic Grade Automatic
- Control System Frequency Speed Control
- Power Supply 3Ph, 415 V, 50Hz Watt (w)
- Supply Ability : Minimum 10 machines Per Month
- Click to view more
Price And Quantity
- 10 machines in a month
Product Specifications
- Supply 3Ph, 415 V, 50Hz Watt (w)
- Yes
- Packaging material: Co-ex multi-layer virgin film
- 450 Kilograms (kg)
- Consume 1.5 Kw/hr Watt (w)
- 1 Year
- 1 x 1 x 2.85 Meter (m)
- Automatic
- Frequency Speed Control
- Automatic Pouch Form Fill Seal Machine For Edible Oil / Vanaspati / Ghee
- 200/500/1000 Milliliter (mL)
Trade Information
- 10 machines Per Month
- 10 Days
- All India
- ISO 9001:2008 Certified Company SSI
Product Description
High Edible Oil Automatic Pouch Form Fill Seal Machine
Salient Features :
- Mechanical cam driven operations.
- Design by electro-pneumatic filling device for no product wastage during start-up.
- Simple and user friendly operations.
- Thyistoriesd impulse sealing system.
- Lowest matching height in available models with easy access to machine filling systems
- Optional facility for independent head\track operation with simultaneous packing of different quantities.
- Sturdy and robust construction
- Optional mechanical dosing system can be offered
- Either PLC controlling or modular PCB controlling system can be provided depends upon customers requirements.
Optional accessories :
- Date ink Coder
- Photo mark registration unit with mounting assembly
- Date embossing attachment
Technical Specification :
| Electricity | 3 phase with regulated Voltage and neutral |
| Power consumption | 3 K.W/ Hour/ Head |
| Cooling Water | 150 to 200 Lts / Hour at 5oC. |
| Accuracy | +/-0.5% of the quantity packed |
| Accuracy in length | +/- 2 mm for all width |
| a) Speed of the machine for side sealing | 30 to 40 Packs/minute/ head for Slayer film |
| Quantity Range | 50ml/gm to 1000 mI/gm |
| Packing Material | LD / Bonding/Nylon Bonding/ Prime core |
| Film thickness | 70 to 110 microns |
| Film width | 324+/-2mm |
| Film roll weight | Up to 40 kgs |
| Type of seal | Vertical overlap / Impulse Heat seal |
| Material of construction | S.S / M.S. Aluminium |
| Injection system | Volumetric filling with mechanical system/by dosing pump control with inverter (VFD) |
| Horizontal Seal | Impulse heat System |
| Vertical Seal | Impulse heat System |
| PLC Control | Included machine will be with PLC |
| Photo sensor | Including with PLC |
| Pouch counter / Alarm | Including With PLC |
