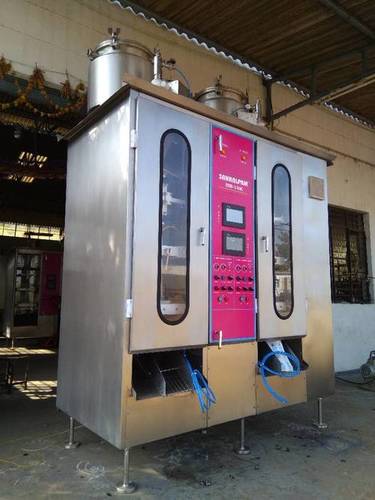

Eco Model Automatic Milk Pouch Form Fill Seal Machine
Product Details:
- Type Automatic Form fill Seal Machine
- Material Packaging: Co-ex Multilayer Virgin Film
- Capacity 100 to 1000ml Milliliter (mL)
- Computerized Yes
- Automatic Grade Automatic
- Control System Human Machine Interface
- Power Supply 3Ph, 415 V, 50Hz Watt (w)
- Supply Ability : 10 Unit minium Per Month
- Click to view more
Price And Quantity
- Minimum 10 machines in a month Unit
Product Specifications
- 2 x 1 x 2.85 Meter (m)
- Packaging: Co-ex Multilayer Virgin Film
- Automatic Form fill Seal Machine
- Human Machine Interface
- Supply 3Ph, 415 V, 50Hz Watt (w)
- 100 to 1000ml Milliliter (mL)
- 750 Approx Kilograms (kg)
- Automatic
- Yes
- Consume 3.0Kw/hr Watt (w)
- 1 Year
Trade Information
- 10 Unit minium Per Month
- 10days Week
- All India
- ISO 9001:2008 Certified Company SSI
Product Description
Being a well known manufacturer and supplier in the market, we are offering premium quality Automatic Pouch Form Fill Seal Machine to our customers. This machine is used for the packing pouches having high capacity. Our offered machine can pack all type of commodities pulses, tea rice, detergent powder, biscuits, peanuts and poha. Apart from that, our customers can get this Automatic Pouch Form Fill Seal Machine from us at market leading rates.
Milk products in poly pouches
- Most economical and conservation of power as it gives double the production for the same power.
- Less wear & Tear as friction parts are reduced and where ever required bearings are employed.
- High Precision due to use of superior components.
- Normal Mechanical Machine output is: 35-45 pouches/minute Where as servo-driven high speed Machine output is: 70-80 pouches/minute.
- Easy diagnosis of faults .In case of fault in electrical/electronic instrumentation, the same will be displayed on PANEL consequently less breakdown time.
- Very Rugged in Operation and demands least supervision.
- Film unwinding assembly is incorporated in the machine.
- It occupies very less space when compared to conventional machine.
- For photo sensing facility there is no additional clutch & Break assembly required as it is in- built.
- User Friendly and can be operated easily.
- Value for Money as the machine is highly productive.
- Less Inventory of Spares as wear-out is minimal
- Compatible for 100 kg film roll with extra film roller assembly outside the machine and thereby less wastage of film loading and time.
- Less manpower requirement for bulk quantity packaging.
- Over all Energy Efficient Machine.
- Also possible to convert your existing packing machine into servo driven high speed mechanical machine.
- This machine price is very affordable and reasonable to purchase.
- This machine is value for your investment and proud for your industry.
Technical Specifications
| S.No | Specifications | |
| 1 | Product to pack | Milk/Butter Milk/lassie |
| 2 | Type of Machine | Fully automaticmechanically controls through PLC |
| 3 | Model | SANKALPAM-ECO-G2 |
| 4 | Feeding systems | Gravity flow |
| 5 | Packaging range | (a) 25 ml to 250ml(If film width is 180 - 260 mm) (b) 100 ml to 1000 ml (If Film width is 325mm) |
| 6 | Accuracy in volume | +/- 0.5% of the Quantity Packed. |
| 7 | Accuracy in length | +/- 2mm for all width |
|
8 |
Speed of the machine | 2400 pouches /Hour Per head up to 250ml 1800 pouches /Hour Per head up to 500ml 1200 pouches/hour per head up to 1000ml |
| 9 | Packing Material | LLDP/LLDPE 3 Color printed |
| 10 | Film thickness | 40 to 70 microns |
| 11 | Film width | 322 +/- 1mm |
| 12 | Film roll weight | 15 to 22 kgs |
| 13 | Type of seal | Vertical overlap / round import |
| 14 | PLC Control | Included machine will be with PLC |
| 15 | Photo sensor | An extra cost |
| 16 | Pouch counter / Alarm | Including with PLC |
| 17 | Coding unit | An extra cost |
| 18 | Injection system | As per customers requirement |
| 19 | Horizontal seal | Impulse System |
| 20 | Vertical seal | Impulse System |
| 21 | Machine power Consumption | 3 K.W / Hour |
| 22 | Electric control panel | As per Industrial Standard |
| 23 | Movement / operation | Cam operated |
| 24 | Motor / Gear box | Standard Make. |
| 25 | Electric supply | Single Phase with Neutral Or 3Phase with Neutral |
| 26 | Cooling water requirement | 120 Lts / Hour |
| 27 | Air pressure requirement | Magnetic Injection systems |
| 28 | Dimension | 1Mtr Width X 1Mtr Depth X 2Mtr Height |
| 29 | Material of construction | S.S 304 / M.S parts Nickel Plated/ Aluminum |
| 30 | Machine weight | 780kgs Approx. |
| 31 | 30kg Film Carrier | Included |
